| Magnification: | 15x |
| Objective Lens Diameter: | 50 mm |
| Linear Field of View: | 65.53m / 914.4m |
| Angular Field of View: | 4.1° |
| Eye Relief: | 16 mm |
| Length: | 177.8mm (7") |
| Width: | 50.8mm (2") |
| Weight: | 0.43kg (15.2 oz) |
| Exit Pupil: | 3.3 mm |
| Close Focus: | 3.66m / 12' |
| HD Optical System: | Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission. | ||||
| XR™ Lens Coatings: | Premium anti-reflective coatings on all air-to-glass surfaces provide superior light transmission for exceptional clarity and low-light performance. | ||||
| ArmorTek®: | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. | ||||
| Argon Gas Purged: | Gas purged and O-ring sealed for fogproof and waterproof performance in all conditions. | ||||
| Rubber Armor: | Provides a secure, non-slip grip, and durable external protection. | ||||
| Phase Correction: | Coating on roof prism enhances resolution and contrast. | ||||
| Waterproof: | Designed to withstand harsh weather conditions. | ||||
| Fogproof: | Designed to withstand a wide range of temperatures. | ||||
| Shockproof: | Designed to withstand the highest levels of recoil and impact. | ||||

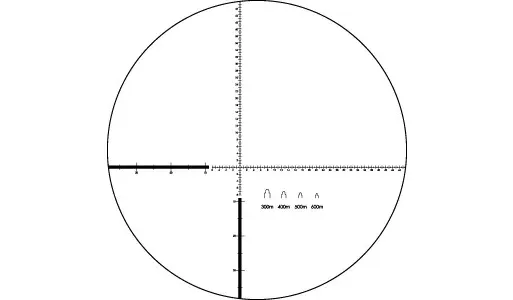

This ranging reticle uses MRAD-based subtensions and includes silhouettes for quick ranging. The angular measurements allow you to calculate ranges when comparing the reticle to objects of known dimension.

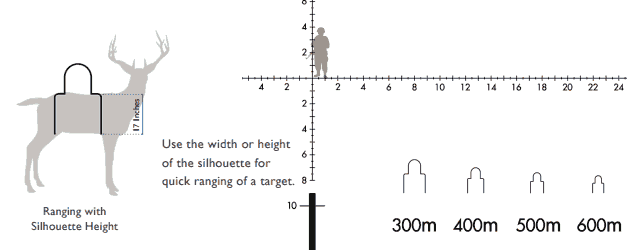

Subtension detail for Recon R/T Monocular with ranging reticle.




Developed specifically for field surveillance and range estimation.
| Exportable products | No |
|---|
