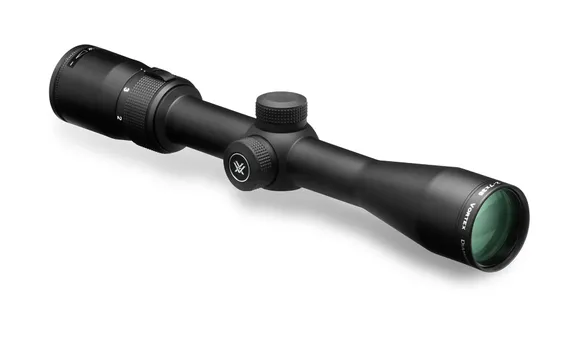

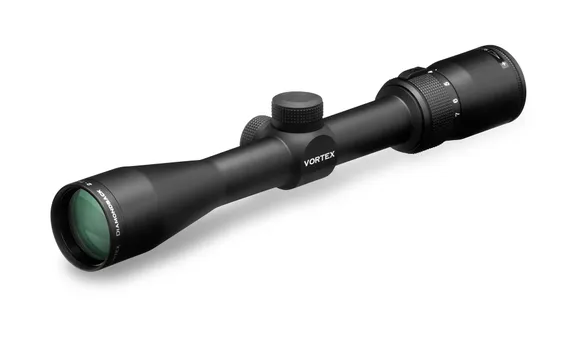

VORTEX - 2-7X35 DIAMONDBACK RIMFIRE
R 7,499.00
Availability:
In stock
SKU
VD2735RF
Description:
The Diamondback - loaded with features! First, the solid one-piece aircraft-grade aluminum alloy construction makes the Diamondback riflescope virtually indestructible and highly resistant to magnum recoil. Argon purging puts waterproof and fogproof performance on the agenda, and advanced fully multi-coated optics raise an eyebrow when crystal clear, tack-sharp images appear in the crosshairs. Look for all this and more in a riflescope you'd expect to cost quite a bit more-but doesn't. We can live with that.
Specifications:
| Magnification: | 2-7x |
| Objective Lens Diameter: | 35 mm |
| Focal Plane: | Second Focal Plane |
| Reticle: | V-Plex (MOA) |
| Turret Style: | Capped |
| Tube Size: | 25.4 mm |
| Adjustment Graduation: | 1/4 MOA |
| Parallax Setting: | 45.72m |
| Max Windage Adjustment: | 100 MOA |
| Max Elevation Adjustment: | 100 MOA |
| Travel Per Rotation: | 15 MOA |
| Field of View: | 58.80m-17.65m @ 91.44m |
| Eye Relief: | 78.74mm (3.1") |
| Length: | 294.64mm (11.6") |
| Weight: | 0.39kg (13.7 oz) |
Razor HD GEN III 6-36x56 Dimensions (in millimetres)
| Lengths | Heights | |||||||
|---|---|---|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 | H1 | H2 | |
| 294.64mm | 46.48mm | 53.34mm | 131.06mm | 85.09mm | 78.74mm | 43.69mm | 42.93mm | |
Features:
| Aluminum Grade: | Aircraft | |
| Multi-Coated: | Fully Multi-Coated | |
| Shockproof: | Rugged construction withstands recoil and impact. | |
Reticle:
V-PLEX RETICLE (MOA)
A popular all-purpose hunting reticle intended for a wide variety of hunting applications.
Subtension detail for the Diamondback 2-7x35 Rimfire riflescope with V-Plex MOA reticle.
What's In The Box?
INCLUDED IN THE BOX
- Removable lens covers
- Lens cloth
Videos:
DIAMONDBACK RIFLESCOPE
Bang for the buck - the Diamondback is your riflescope.
FIRST VS. SECOND FOCAL PLANE
The basic difference between first and second focal plane riflescopes.
WHY I CHOSE: VORTEX DIAMONDBACK RIFLESCOPE
Customer reviews of product.
