VORTEX - 3.5-10X50 DIAMONDBACK
R 9,499.00
Availability:
In stock
SKU
VD351050DH
Description:

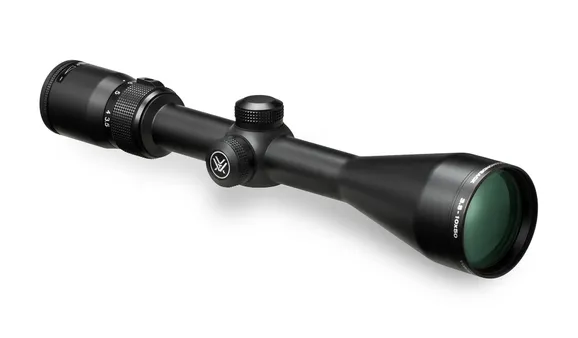

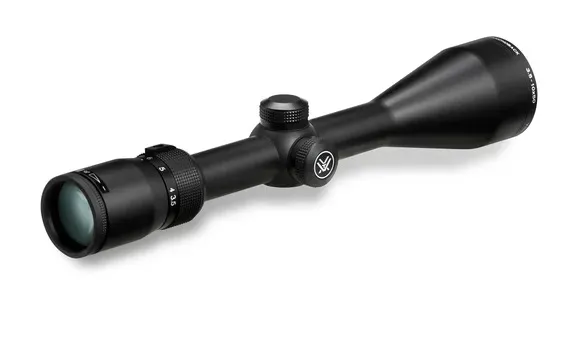

The Diamondback - loaded with features! First, the solid one-piece aircraft-grade aluminum alloy construction makes the Diamondback riflescope virtually indestructible and highly resistant to magnum recoil. Argon purging puts waterproof and fogproof performance on the agenda, and advanced fully multi-coated optics raise an eyebrow when crystal clear, tack-sharp images appear in the crosshairs. Look for all this and more in a riflescope you'd expect to cost quite a bit more-but doesn't. We can live with that.
Specifications:
| Magnification: | 3.5-10x |
| Objective Lens Diameter: | 50 mm |
| Focal Plane: | Second Focal Plane |
| Reticle: | Dead-Hold® BDC (MOA) |
| Turret Style: | Capped |
| Tube Size: | 25.4 mm |
| Adjustment Graduation: | 1/4 MOA |
| Parallax Setting: | 91.44m |
| Max Windage Adjustment: | 65 MOA |
| Max Elevation Adjustment: | 65 MOA |
| Travel Per Rotation: | 15 MOA |
| Field of View: | 10.91m-4.11m @ 91.44m |
| Eye Relief: | 83.82mm (3.3") |
| Length: | 317.5mm (12.5") |
| Weight: | 0.46kg (16.2 oz) |
Diamondback 3.5-10x50 Dimensions (in millimetres)
| Lengths | Heights | |||||||
|---|---|---|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 | H1 | H2 | |
| 317.5mm | 54.61mm | 53.34mm | 139.19mm | 97.79mm | 78.74mm | 58.17mm | 42.93mm | |
Features:
| Aluminum Grade: | Aircraft | |
| Multi-Coated: | Fully Multi-Coated | |
| Shockproof: | Rugged construction withstands recoil and impact. | |
Reticle:
Dead-Hold® BDC (MOA)
Customized dot design helps eliminate guesswork on holdover and windage corrections. Good for hunting/shooting at varying ranges where estimating holdover is a concern.
Subtension detail for Diamondback 3.5-10x50 riflescope with Dead-Hold® BDC MOA reticle.
What's In The Box?
INCLUDED IN THE BOX
- Removable lens covers
- Lens cloth
Videos:
VORTEX DIAMONDBACK RIFLESCOPE
Bang for the buck - the Diamondback is your riflescope.
VORTEX RIFLESCOPES: FIRST VS. SECOND FOCAL PLANE
The basic difference between first and second focal plane riflescopes.
HOW TO USE THE VORTEX DEAD-HOLD® BDC RETICLE
Learn how to effectively use the Dead-Hold BDC reticle in the field.
WHY I CHOSE: VORTEX DIAMONDBACK RIFLESCOPE
Customer reviews of product.
