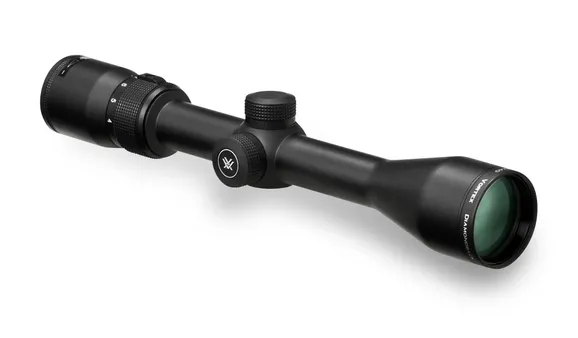

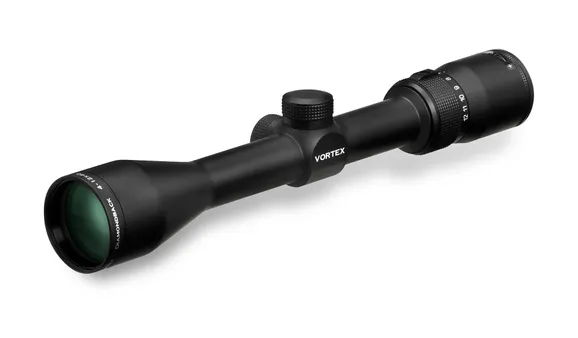

VORTEX - 4-12X40 DIAMONDBACK
R 7,999.00
Availability:
In stock
SKU
VD41240DH
Description:
The Diamondback - loaded with features! First, the solid one-piece aircraft-grade aluminum alloy construction makes the Diamondback riflescope virtually indestructible and highly resistant to magnum recoil. Argon purging puts waterproof and fogproof performance on the agenda, and advanced fully multi-coated optics raise an eyebrow when crystal clear, tack-sharp images appear in the crosshairs. Look for all this and more in a riflescope you'd expect to cost quite a bit more-but doesn't. We can live with that.
Specifications:
| Magnification: | 4-12x |
| Objective Lens Diameter: | 40 mm |
| Focal Plane: | Second Focal Plane |
| Reticle: | Dead-Hold® BDC (MOA) |
| Turret Style: | Capped |
| Tube Size: | 25.4 mm |
| Adjustment Graduation: | 1/4 MOA |
| Parallax Setting: | 91.44m |
| Max Windage Adjustment: | 60 MOA |
| Max Elevation Adjustment: | 60 MOA |
| Travel Per Rotation: | 15 MOA |
| Field of View: | 9.88m-3.44m @ 91.44m |
| Eye Relief: | 78.74mm (3.1") |
| Length: | 304.8mm (12") |
| Weight: | 0.41kg (14.6 oz) |
Diamondback 4-12x40 Dimensions (in millimetres)
| Lengths | Heights | |||||||
|---|---|---|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 | H1 | H2 | |
| 304.8mm | 62.48mm | 54.61mm | 148.59mm | 76.2mm | 78.74mm | 48.06mm | 42.93mm | |
Features:
| Aluminum Grade: | Aircraft | |
| Multi-Coated: | Fully Multi-Coated | |
| Shockproof: | Rugged construction withstands recoil and impact. | |

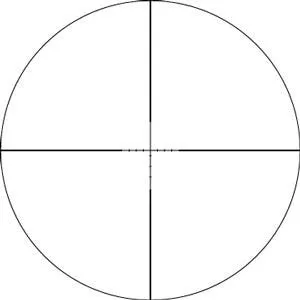

Reticle:
Dead-Hold® BDC (MOA)
Customized dot design helps eliminate guesswork on holdover and windage corrections. Good for hunting/shooting at varying ranges where estimating holdover is a concern.
Subtension detail for Diamondback 4-12X40 riflescope with Dead-Hold® BDC MOA reticle.
What's In The Box?
INCLUDED IN THE BOX
- Removable lens covers
- Lens cloth
Videos:
DIAMONDBACK RIFLESCOPE
Bang for the buck - the Diamondback is your riflescope.
FIRST VS. SECOND FOCAL PLANE
The basic difference between first and second focal plane riflescopes.
HOW TO USE THE VORTEX DEAD-HOLD BDC RETICLE
Learn how to effectively use the Dead-Hold BDC reticle in the field.
WHY I CHOSE: VORTEX DIAMONDBACK RIFLESCOPE
Customer reviews of product.
